CraftiX XC series

The new generation of professional safety vacuum cleaners with XConnect wireless technology and patented dual-chamber filtration system.

The CraftiX XC series from SPRiNTUS combines innovative wireless technology with state-of-the-art filtration and sets new standards in safety, convenience and efficiency for professional applications. The safety vacuum cleaners for dust classes L, M and H, including asbestos, are equipped as standard with the integrated XConnect wireless module. This enables automatic start/stop control for cordless power tools, ensuring dust extraction is active exactly when dust is generated. In addition, XConnect can be used as a convenient remote control, allowing the vacuum cleaner to be switched on and off directly from the hose cuff or workplace without unnecessary trips to the machine.

At the heart of the CraftiX XC models is the patented HEPA cartridge filter with two independently operating filter chambers. Unlike conventional safety vacuum cleaners, suction performance is not interrupted during automatic filter cleaning. While one filter chamber is being cleaned, the second chamber continues filtration and maintains a constant airflow. The result is consistently high suction performance, fewer work interruptions and maximum efficiency, even when handling large amounts of fine dust.

The automatic and exceptionally quiet filter cleaning system keeps the filter permanently clear and ensures consistently high suction performance, even under the most demanding conditions. Combined with the high-performance HEPA filtration technology, hazardous dust particles are reliably captured before they can enter the breathable air.

Models in dust classes M and H feature complete antistatic equipment as standard and are ideally suited for collecting large quantities of hazardous fine dust. The L-class models are prepared for the use of optional antistatic accessories. Rugged construction-site quality, outstanding filtration performance and intelligent XConnect technology make the CraftiX XC series the ideal solution for construction, renovation, trade and industrial applications.

Features

✓ Integrated XConnect wireless control system for battery-operated and electric power tools

✓ Automatic start/stop function when dust is generated

✓ Convenient remote on/off switching of the vacuum cleaner directly from the hose handle

✓ Wireless range up to 30 m – no Wi-Fi or cloud connection required

✓ Patented dual-chamber filter system for uninterrupted operation (HEPA 13 / HEPA 14)

✓ Automatic and exceptionally quiet filter cleaning





✓ Dust classes L, M and H including asbestos applications (TRGS 519)

✓ Antistatic equipment (M & H) or antistatic preparation (L)

✓ Extremely robust construction for tough jobsite use

✓ Ergonomic push handle for comfortable transport

✓ Integrated power tool socket up to 2,200 W

✓ Extensive range of accessories and integrated holder systems

✓ Custom logo plate for company branding or OEM labeling

Please activate "YouTube" to play this video. Further details on the services and cookies used can be found in the Privacy policy. Allow YouTube Videos

Patented filter cleaning

(1) Dealing with hazardous dusts requires innovative product developments. The heart of the CraftiX XC is the patented HEPA 13 cartridge filter.

(2) It consists of two independent filter chambers, which are cleaned one after the other. Suction current and suction power thus remain at a consistently high level even during cleaning, which guarantees permanent suction.

(3) Filter cleaning is carried out by air backwashing and, thanks to the patented cartridge filter, ensures that the fine pores of the filter are freed from dust without leaving any residue. The maintenance and cleaning of the filter is no longer necessary and you save time and money.

(4) Filter cleaning takes place automatically every 45 seconds. It is quieter than average and is therefore particularly userfriendly.

Warning device and controls.

With the two CraftiX XC models of dust class M, the suction power is monitored by a warning device. After setting the smallest diameter used in the suction harness, the user is warned by an acoustic and visual signal if the required air flow is not reached. This avoids increased dust pollution of breathable air.

The power tool can be plugged directly into the vacuum cleaner thanks to the integrated socket. Due to the automatic switch on and off, the vacuum cleaner is started automatically or stopped with a lag of 5 seconds.

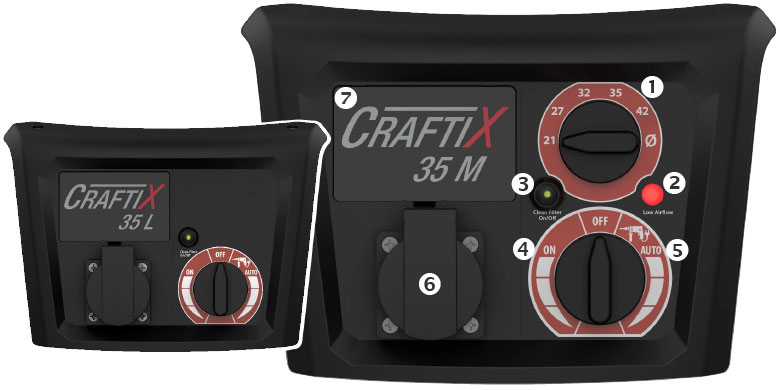

CraftiX 35 M/H XC + 50 M/H XC

(1) Selector switch hose diameter.
(2) High safety due to warning LED and acoustic warning signal.

CraftiX 35 L/M/H XC + 50 L/M/H XC

(3) On/off button automatic filter cleaning.
(4) Standard operation with infinitely adjustable power regulation.
(5) Automatic operation with connected power tool and infinitely variable power regulation.
(6) Socket for power tools up to a maximum of 2.200 watts.
(7) Customisation by way of printed logo.

Good reasons for efficient dust control.

Where power tools are used, dust is ­often produced. Not any type of dust, but harmful fine particles. The dust should be ­absorbed where it is formed, directly on the power tool.

This is exactly what the robust SPRiNTUS safety vacuum cleaners are designed for. Whether on the construction site or in the workshop, they collect dusts that are hazardous to health at a constantly high level of suction power before it pollutes breathable air. In particular, fine dusts remain in the air we breathe in for a long time and can penetrate deep into the lung tissue. This can lead to asthma and other chronic lung  diseases. For this reason, legislators also prescribe the use of certified safety vacuum cleaners at construction sites. With the CraftiX safety vacuum cleaners, you protect the user from these risks. In this way, sawing, drilling, cutting, milling and grinding work can be carried out efficiently and safely without hesitation.

Your application is crucial.

What kind of safety vacuum cleaner is suitable for your application? The dust classes provide the answer to this question. Materials and their dusts are classified according to them and machines are certified,  because the vacuum cleaners meet the corresponding requirements for dust control.

Dust class* Maximum transmittance Suitable for Disposal

L

≤ 1,0%
  • Dusts with OEL** values > 1mg/m3
  • Domestic dust, soil, lime

—

M

< 0,1%
  • Dusts with OEL** values ≥ 0,1mg/m³
  • Wood, screed, primer coat and paint, plaster, cement, concrete,
    tile adhesive, paints such as latex and oil paints,
    quartz containing materials such as sand and pebbles

Low dust

H

< 0,005%
  • Dusts with OEL** values < 0,1mg/m3
  • Carcinogenic dust, dust with pathogens, dust with bacteria

Dust free

Asbestos requirement

< 0,005%
  • Dusts with OEL** values < 0,1mg/m3
  • Asbestos dust

Dust free

*according to the standard: IEC / EN 60335-2-69    **occupational exposure limit value

The overview provides information about the maximum transmittance of a certified vacuum cleaner as well as the legal occupational exposure limit value of the dusts. Class-L dusts are classified as only slightly hazardous, those belonging to Class M are deemed hazardous and those belonging to Class H are regarded as extremely hazardous. No special regulations must be observed when disposing L-dusts. M-dusts, on the other hand, must be disposed of in a low-dust manner and H-dusts must be disposed of in a dust-free manner. Depending on the dust class, the use of fleece filter bags (item no. 102.031) or special PE disposal bags (item no. 118.138) for dust-free disposal is recommended.

CraftiX model comparison

Technical Data
Id
Voltage 220-240 V / 50-60 Hz 220-240 V / 50-60 Hz 220-240 V / 50-60 Hz 220-240 V / 50-60 Hz 220-240 V / 50-60 Hz 220-240 V / 50-60 Hz
Max. Power 1200 W 1200 W 1200 W 1200 W 1200 W 1200 W
Sound pressure level 71 dB(A) 71 dB(A) 71 dB(A) 71 dB(A) 71 dB(A) 71 dB(A)
Max. negative pressure 250 hPa / mbar 250 hPa / mbar 250 hPa / mbar 250 hPa / mbar 250 hPa / mbar 250 hPa / mbar
Volume flow 74 litres / sec. 74 litres / sec. 74 litres / sec. 74 litres / sec. 74 litres / sec. 74 litres / sec.
Container material plastic plastic plastic plastic plastic plastic
Container volume 35 Litres (gross) 35 Litres (gross) 35 Litres (gross) 50 litres (gross) 50 litres (gross) 50 litres (gross)
Weight 16 kg 16 kg 16 kg 19,5 kg 19,5 kg 19,5 kg
Dimensions (L x W x H) 54 x 39 x 63,5 cm 54 x 39 x 63,5 cm 54 x 39 x 63,5 cm 54 x 39 x 63,5 cm 54 x 39 x 77 cm 54 x 39 x 77 cm
Selector switch hose Ø Check Check Check Check
Acoustic warning signal Check Check Check Check
Bluetooth integration only XC only XC only XC only XC only XC only XC
Warning LED Check Check Check Check
Bluetooth integration only XC only XC only XC only XC only XC only XC
Id
Suction tube 0,5 m, stainless steel 2 pcs 2 pcs 2 pcs 2 pcs 2 pcs 2 pcs
Suction hose 5 m, antistatic and oil resistant, Ø 35 mm optional Check Check optional Check Check
Suction hose 5 m, Ø 35 mm Check Check Check Check Check Check
Suction hose 2,5 m, antistatic and oil resistant, Ø 38 mm optional Check Check optional Check Check
Dry floor nozzle 450 mm Check Check Check Check Check Check
Crevice nozzle Check Check Check Check Check Check
Round nozzle Check Check Check Check Check Check
HEPA 13 cartridge filter Check Check Check Check
HEPA 14 cartridge filter optional optional optional optional Check
Power cord: H07RNF, 10 m Check Check Check Check Check Check
Tool key for filter change accessories Check Check accessories Check Check
Power tool adapter Ø 21 / 25 / 32 mm Check Check Check Check Check Check
Power tool adapter Ø 35 mm Check Check Check Check Check Check
Fleece filter bags 35 Liter (5 pieces) 1 pcs 1 pcs 1 pcs
Fleece filter bags 50 Liter (5 pieces) 1 pcs 1 pcs 1 pcs
Disposal bags (5 pieces) optional 1 pcs optional optional 1 pcs optional
Disposal bags asbestos (5 pieces) optional optional 1 pcs optional optional 1 pcs
Power tool adapter Ø 38 mm optional optional optional optional optional optional
Adapter plate for tool cases optional optional optional optional optional
Wet floor nozzle 450 mm optional optional optional optional optional
Squeegees Set 450mm optional optional optional optional optional optional
Handle, antistatic optional optional optional optional optional optional
Set of brush strips 450mm for 10212 optional optional optional optional optional optional
  • Checkstandard equipment
  • Unavailablenot available
Id
CraftiX XC brochure

Equipment and accessories

CraftiX 35 L XC (Item no. 118703)
CraftiX 50 L XC (Item no. 118717)

Xconnect Transmitter (incl. replacement strap), Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, suction hose 5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 13 cartridge filter, fleece filter bag, rubber mains cable:  H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm, XConnect Transmitter (incl. rubber strap)



CraftiX 35 M XC  (Item no. 118732)
CraftiX 50 M XC (Item no. 118747)

Xconnect Transmitter (incl. replacement strap), Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, anti-static and oil-resistant suction hose 5 m with Ø 35 mm, anti-static and oil-resistant suction hose 2,5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 13 cartridge filter, fleece filter bag, disposal bag, rubber mains cable: H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm, XConnect Transmitter (incl. rubber strap)



CraftiX 35 H XC (Item no. 118762)
CraftiX 50 H XC (Item no. 118777)

Xconnect Transmitter (incl. replacement strap), Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, anti-static and oil-resistant suction hose 5 m with Ø 35 mm, anti-static and oil-resistant suction hose 2,5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 14 cartridge filter, fleece filter bag, disposal bag, rubber mains cable: H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm, XConnect Transmitter (incl. rubber strap)

Standard Accessories

Xconnect Transmitter (inkl. Gummiband)

118341

Edelstahl-Saugrohr, einzeln

102018

Saugschlauch 5 m, antistatisch, ölbeständig

118143

Trockenbodendüse 450 mm

102125

Fugendüse 240 mm

102016

Rundpinsel

102017

HEPA 13 Patronenfilter

118100

Netzkabel H07RNF, 10 m, schwarz

118110

Werkzeugschlüssel für Filterwechsel

118124

Elektrowerkzeugadapter Ø 21 / 25 / 32 mm

118122

Elektrowerkzeugadapter Ø 35 mm

118139

Vliesfiltertüte (VE 5 Stück)

102031

Entsorgungsbeutel (5 Stück)

118138

Entsorgungsbeutel Asbest (5 Stück)

118169

Optional Accessories

Elektrowerkzeugadapter Ø 38 mm

118141

Adapterplatte für Werkzeugkoffer

118150

Nassbodendüse 450 mm

102124

Gummileisten-Set 450 mm für Art. 102124

102126

Handgriff, antistatisch

118115

Bürststreifen Set 450mm für 102125

102127
