CraftiX XC series
The New Generation of Professional Safety Vacuum Cleaners with XConnect Wireless Technology and Patented Dual-Chamber Filter System
The CraftiX XC series from SPRiNTUS combines innovative wireless technology with state-of-the-art filtration systems and sets new standards in safety, convenience, and efficiency for professional applications. The XC safety vacuums for dust classes L, M, and H, including asbestos applications, are equipped as standard with the integrated XConnect wireless module.
This system enables automatic start/stop control of cordless power tools, ensuring extraction is activated precisely when dust is generated. XConnect can also be used as a convenient remote control, allowing the vacuum cleaner to be switched on and off directly from the hose handle or workplace without unnecessary trips to the machine.
The heart of the CraftiX XC models is the patented HEPA cartridge filter with two independently operating filter chambers. Unlike conventional safety vacuums, suction performance is not interrupted during automatic filter cleaning. While one chamber is being cleaned, the second chamber continues filtering and maintains a constant airflow.
The result: consistently high suction performance, fewer work interruptions, and maximum efficiency even when handling large quantities of fine dust.
The automatic and exceptionally quiet filter cleaning system keeps the filter permanently clean and ensures consistently high suction power under even the most demanding conditions. Combined with high-performance HEPA filtration technology, hazardous dust is reliably captured before it enters the breathing air.
Models in dust classes M and H are equipped with a complete antistatic system as standard and are ideal for collecting large quantities of hazardous fine dust. The L models are prepared for optional antistatic accessories.
Robust construction-site quality, outstanding filtration performance, and BG BAU funding eligibility for M and H models make the CraftiX XC series the ideal solution for construction, renovation, trade, and industrial applications.
Features
✓ Integrated XConnect wireless control system for battery-operated and electric power tools
✓ Automatic start/stop function when dust is generated
✓ Convenient remote on/off switching of the vacuum cleaner directly from the hose handle
✓ Wireless range up to 30 m – no Wi-Fi or cloud connection required
✓ Patented dual-chamber filter system for uninterrupted operation (HEPA 13 / HEPA 14)
✓ Automatic and exceptionally quiet filter cleaning
✓ Dust classes L, M and H including asbestos applications (TRGS 519)
✓ Antistatic equipment (M & H) or antistatic preparation (L)
✓ Extremely robust construction for tough jobsite use
✓ Ergonomic push handle for comfortable transport
✓ Integrated power tool socket up to 2,200 W
✓ Extensive range of accessories and integrated holder systems
✓ Custom logo plate for company branding or OEM labeling

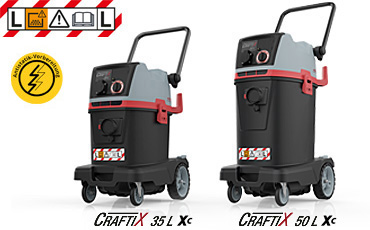

For Class-L dusts with automatic filter cleaning.
The CraftiX 35 L XC and 50 L XC safety vacuum cleaners are your ideal partner if you work with Class-L dusts that are slightly hazardous to health. Thanks to the anti-static preparation, an optional anti-static hose (item no. 118.143) can be connected to prevent electrostatic charges. In this way, dangerous sparks, static charging and the deposition of dirt in the suction hose can be avoided.

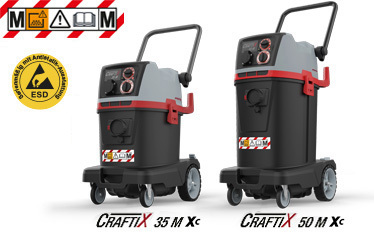

For hazardous Class-M dusts with automatic filter cleaning and extended warning system.
Wood dusts, paint dusts or other dusts – the two safety vacuum cleaners CraftiX 35 M XC and 50 M XC absorb hazardous Class-M dusts before they enter breathable air. Due to the standard anti-static equipment, the two M safety vacuum cleaners are ideal for extracting large amounts of fine dust directly on the power tool.

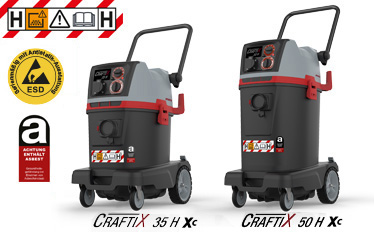

For hazardous dusts of dust class H with automatic filter cleaning, HEPA 14 filter cartridge and extended warning system.
Carcinogenic dusts, dusts with pathogens, dusts with bacteria and asbestos - the two safety vacuum cleaners CraftiX 35 H XC and 50 H XC extract hazardous dusts of dust class H before they get into the breathing air.
Thanks to the standard antistatic equipment, the two H safety vacuum cleaners are ideal for vacuuming large quantities of fine dust directly on the power tool.
Please activate "YouTube" to play this video.
Further details on the services and cookies used can be found in the Privacy policy.
Allow YouTube Videos
Patented filter cleaning
(1) Dealing with hazardous dusts requires innovative product developments. The heart of the CraftiX XC is the patented HEPA 13 cartridge filter.
(2) It consists of two independent filter chambers, which are cleaned one after the other. Suction current and suction power thus remain at a consistently high level even during cleaning, which guarantees permanent suction.
(3) Filter cleaning is carried out by air backwashing and, thanks to the patented cartridge filter, ensures that the fine pores of the filter are freed from dust without leaving any residue. The maintenance and cleaning of the filter is no longer necessary and you save time and money.
(4) Filter cleaning takes place automatically every 45 seconds. It is quieter than average and is therefore particularly userfriendly.
Warning device and controls.
With the two CraftiX XC models of dust class M, the suction power is monitored by a warning device. After setting the smallest diameter used in the suction harness, the user is warned by an acoustic and visual signal if the required air flow is not reached. This avoids increased dust pollution of breathable air.
The power tool can be plugged directly into the vacuum cleaner thanks to the integrated socket. Due to the automatic switch on and off, the vacuum cleaner is started automatically or stopped with a lag of 5 seconds.

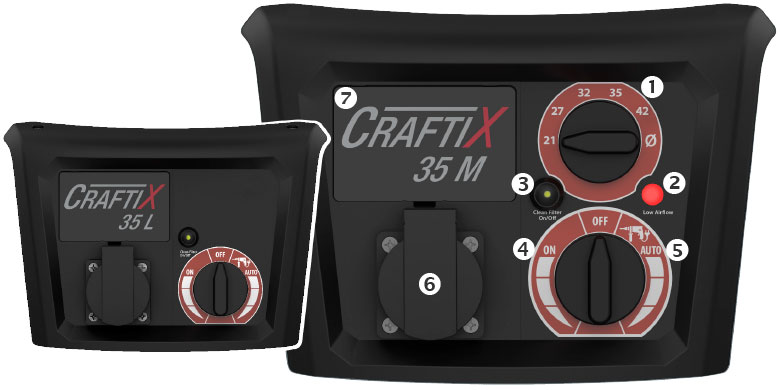

CraftiX 35 XC M/H + 50 M/H
(1) Selector switch hose diameter.
(2) High safety due to warning LED and acoustic warning signal.
CraftiX 35 XC L/M/H + 50 L/M/H
(3) On/off button automatic filter cleaning.
(4) Standard operation with infinitely adjustable power regulation.
(5) Automatic operation with connected power tool and infinitely variable power regulation.
(6) Socket for power tools up to a maximum of 2.200 watts.
(7) Customisation by way of printed logo.
Good reasons for efficient dust control.
Where power tools are used, dust is often produced. Not any type of dust, but harmful fine particles. The dust should be absorbed where it is formed, directly on the power tool.
This is exactly what the robust SPRiNTUS safety vacuum cleaners are designed for. Whether on the construction site or in the workshop, they collect dusts that are hazardous to health at a constantly high level of suction power before it pollutes breathable air. In particular, fine dusts remain in the air we breathe in for a long time and can penetrate deep into the lung tissue. This can lead to asthma and other chronic lung diseases. For this reason, legislators also prescribe the use of certified safety vacuum cleaners at construction sites. With the CraftiX safety vacuum cleaners, you protect the user from these risks. In this way, sawing, drilling, cutting, milling and grinding work can be carried out efficiently and safely without hesitation.
Your application is crucial.
What kind of safety vacuum cleaner is suitable for your application? The dust classes provide the answer to this question. Materials and their dusts are classified according to them and machines are certified, because the vacuum cleaners meet the corresponding requirements for dust control.
| Dust class* | Maximum transmittance | Suitable for | Disposal |
|---|---|---|---|
|
L
|
≤ 1,0% |
|
— |
|
M
|
< 0,1% |
|
Low dust |
|
H
|
< 0,005% |
|
Dust free |
|
Asbestos requirement
|
< 0,005% |
|
Dust free |
*according to the standard: IEC / EN 60335-2-69 **occupational exposure limit value
The overview provides information about the maximum transmittance of a certified vacuum cleaner as well as the legal occupational exposure limit value of the dusts. Class-L dusts are classified as only slightly hazardous, those belonging to Class M are deemed hazardous and those belonging to Class H are regarded as extremely hazardous. No special regulations must be observed when disposing L-dusts. M-dusts, on the other hand, must be disposed of in a low-dust manner and H-dusts must be disposed of in a dust-free manner. Depending on the dust class, the use of fleece filter bags (item no. 102.031) or special PE disposal bags (item no. 118.138) for dust-free disposal is recommended.
CraftiX model comparison
| Id |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Voltage | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz |
| Max. Power | 1200 W | 1200 W | 1200 W | 1200 W | 1200 W | 1200 W |
| Sound pressure level | 71 dB(A) | 71 dB(A) | 71 dB(A) | 71 dB(A) | 71 dB(A) | 71 dB(A) |
| Max. negative pressure | 250 hPa / mbar | 250 hPa / mbar | 250 hPa / mbar | 250 hPa / mbar | 250 hPa / mbar | 250 hPa / mbar |
| Volume flow | 74 litres / sec. | 74 litres / sec. | 74 litres / sec. | 74 litres / sec. | 74 litres / sec. | 74 litres / sec. |
| Container material | plastic | plastic | plastic | plastic | plastic | plastic |
| Container volume | 35 Litres (gross) | 35 Litres (gross) | 35 Litres (gross) | 50 litres (gross) | 50 litres (gross) | 50 litres (gross) |
| Weight | 54 x 39 x 63,5 cm | 54 x 39 x 63,5 cm | 54 x 39 x 63,5 cm | 54 x 39 x 77 cm | 54 x 39 x 77 cm | 54 x 39 x 77 cm |
| Selector switch hose Ø |
|
|
|
|
||
| Acoustic warning signal |
|
|
|
|
||
| Warning LED |
|
|
|
|
||
| Bluetooth integration | only XC | only XC | only XC | only XC | only XC | only XC |
| Id |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Suction tube 0,5 m, stainless steel | 2 pcs | 2 pcs | 2 pcs | 2 pcs | 2 pcs | 2 pcs |
| Suction hose 5 m, antistatic and oil resistant, Ø 35 mm | optional |
|
|
optional |
|
|
| Suction hose 5 m, Ø 35 mm |
|
|
|
|
|
|
| Suction hose 2,5 m, antistatic and oil resistant, Ø 38 mm |
|
|
|
|
|
|
| Dry floor nozzle 450 mm |
|
|
|
|
|
|
| Crevice nozzle | accessoires | accessoires |
|
accessoires | accessoires |
|
| Round nozzle |
|
|
|
|
|
|
| HEPA 13 cartridge filter | accessoires | accessoires | accessoires | accessoires | accessoires | accessoires |
| HEPA 14 cartridge filter | accessories | accessories | accessories | accessories | accessories | accessories |
| Power cord: H07RNF, 10 m |
|
|
|
|
|
|
| Tool key for filter change | accessories |
|
|
accessories |
|
|
| Power tool adapter Ø 21 / 25 / 32 mm |
|
|
|
|
|
|
| Power tool adapter Ø 35 mm |
|
|
|
|
|
|
| Fleece filter bags 35 Liter (5 pieces) |
|
|
|
|
|
|
| Fleece filter bags 50 Liter (5 pieces) | accessories |
|
|
accessories |
|
|
| Disposal bags (5 pieces) |
|
|
|
|
|
|
| Disposal bags asbestos (5 pieces) | accessories |
|
|
accessories |
|
|
| Power tool adapter Ø 38 mm | ||||||
| Adapter plate for tool cases | ||||||
| Wet floor nozzle 450 mm | ||||||
| Squeegees Set 450mm | ||||||
| Handle, antistatic | ||||||
| Set of brush strips 450mm for 10212 |
- standard equipment
- not available
| Id |
|
|
|
|
|
|
|---|
Equipment and accessories
CraftiX 35 L XC (Item no. 118701)
CraftiX 50 L XC (Item no. 118715)
Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, suction hose 5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 13 cartridge filter, fleece filter bag, rubber mains cable: H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm, XConnect Transmitter (incl. rubber strap)
CraftiX 35 M XC (Item no. 118730)
CraftiX 50 M XC (Item no. 118745)
Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, anti-static and oil-resistant suction hose 5 m with Ø 35 mm, anti-static and oil-resistant suction hose 2,5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 13 cartridge filter, fleece filter bag, disposal bag, rubber mains cable: H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm, XConnect Transmitter (incl. rubber strap)
CraftiX 35 H XC (Item no. 118760)
CraftiX 50 H XC (Item no. 118775)
Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, anti-static and oil-resistant suction hose 5 m with Ø 35 mm, anti-static and oil-resistant suction hose 2,5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 14 cartridge filter, fleece filter bag, disposal bag, rubber mains cable: H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm,XConnect Transmitter (incl. rubber strap)
Standard Accessories
Saugschlauch 5 m, antistatisch, ölbeständig
118143
Trockenbodendüse 450 mm
102125
Fugendüse 240 mm
102016
Rundpinsel
102017
HEPA 13 Patronenfilter
118100
Netzkabel H07RNF, 10 m, schwarz
118110
Werkzeugschlüssel für Filterwechsel
118124
Elektrowerkzeugadapter Ø 21 / 25 / 32 mm
118122
Elektrowerkzeugadapter Ø 35 mm
118139
Vliesfiltertüte (VE 5 Stück)
102031
Entsorgungsbeutel (5 Stück)
118138
Entsorgungsbeutel Asbest (5 Stück)
118169
Xconnect Transmitter (inkl. Gummiband)
118341
Optional Accessories
Elektrowerkzeugadapter Ø 38 mm
118141
Adapterplatte für Werkzeugkoffer
118150
Nassbodendüse 450 mm
102124
Gummileisten-Set 450 mm für Art. 102124
102126
Handgriff, antistatisch
118115
Bürststreifen Set 450mm für 102125
102127
