Maximum health protection in the case of hazardous dusts.

The new certified safety vacuum cleaners by SPRiNTUS for dust classes L, M and H vacuum where hazardous dust is produced. Directly on the power tool. And all this with automatic filter cleaning with a consistently high level of suction power.



The SPRiNTUS safety vacuum cleaners at a glance.

For an efficient control of Class L, M and H dusts, we offer you the CraftiX model series with a total of six safety vacuum cleaners. In both dust classes, you have the choice between a model with a container volume of 35 and 50 litres.

With the CraftiX models you ensure maximum health protection of the user. The efficient filter cleaning ensures a permanently free filter with a perpetually high level of suction power. This saves you time and money because filter cleaning takes place automatically without suction current and power interruption, even in the case of extreme amounts of fine dust.

3D View

For Class-L dusts with automatic filter cleaning.

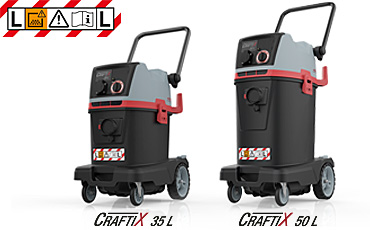

The CraftiX 35 L and 50 L safety vacuum cleaners are your ideal partner if you work with Class-L dusts that are slightly hazardous to health. Thanks to the anti-static preparation, an optional anti-static hose  (item no. 118.143) can be connected to prevent electrostatic charges. In this way, dangerous sparks, static charging and the deposition of dirt in the suction hose can be avoided.

For hazardous Class-M dusts with automatic filter cleaning and extended warning system.

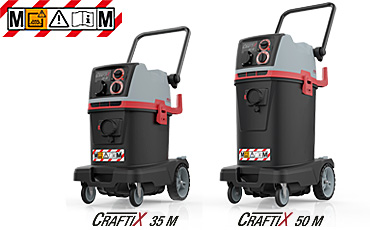

Wood dusts, paint dusts or other dusts – the two safety vacuum cleaners CraftiX 35 M and 50 M absorb hazardous Class-M dusts before they enter breathable air. Due to the standard anti-static equipment,  the two M safety vacuum cleaners are ideal for extracting large amounts of fine dust directly on the power tool.

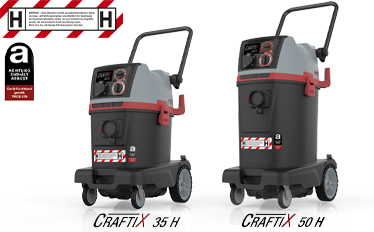

For hazardous dusts of dust class H with automatic filter cleaning, HEPA 14 filter cartridge and extended warning system.

Carcinogenic dusts, dusts with pathogens, dusts with bacteria and asbestos - the two safety vacuum cleaners CraftiX 35 H and 50 H extract hazardous dusts of dust class H before they get into the breathing air.

Thanks to the standard antistatic equipment, the two H safety vacuum cleaners are ideal for vacuuming large quantities of fine dust directly on the power tool.

Please activate "YouTube" to play this video. Further details on the services and cookies used can be found in the Privacy policy. Allow YouTube Videos

Patented filter cleaning

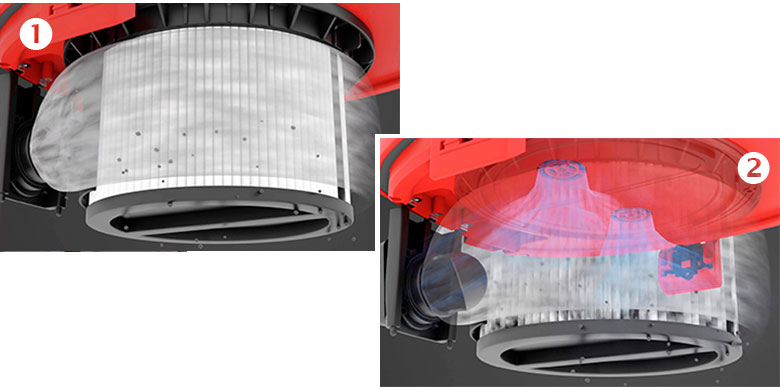

(1) Dealing with hazardous dusts requires innovative product developments. The heart of the CraftiX is the patented HEPA 13 cartridge filter.

(2) It consists of two independent filter chambers, which are cleaned one after the other. Suction current and suction power thus remain at a consistently high level even during cleaning, which guarantees permanent suction.

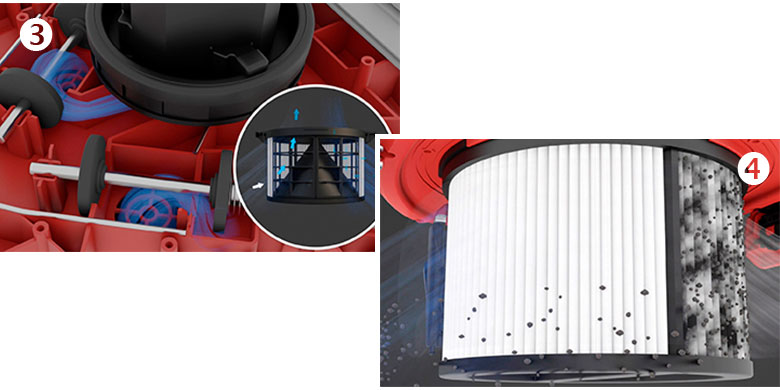

(3) Filter cleaning is carried out by air backwashing and, thanks to the patented cartridge filter, ensures that the fine pores of the filter are freed from dust without leaving any residue. The maintenance and cleaning of the filter is no longer necessary and you save time and money.

(4) Filter cleaning takes place automatically every 45 seconds. It is quieter than average and is therefore particularly userfriendly.

Warning device and controls.

With the two CraftiX models of dust class M, the suction power is monitored by a warning device. After setting the smallest diameter used in the suction harness, the user is warned by an acoustic and visual signal if the required air flow is not reached. This avoids increased dust pollution of breathable air.

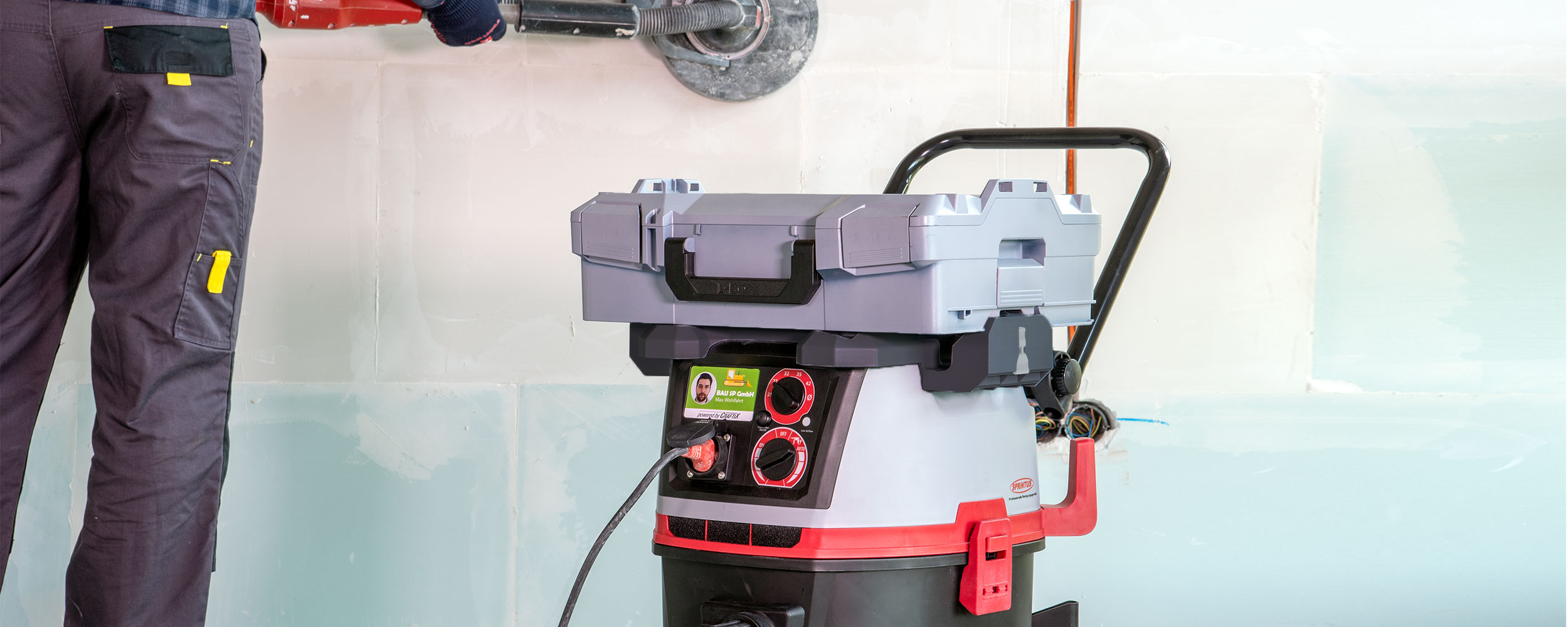

The power tool can be plugged directly into the vacuum cleaner thanks to the integrated socket. Due to the automatic switch on and off, the vacuum cleaner is started automatically or stopped with a lag of 5 seconds.

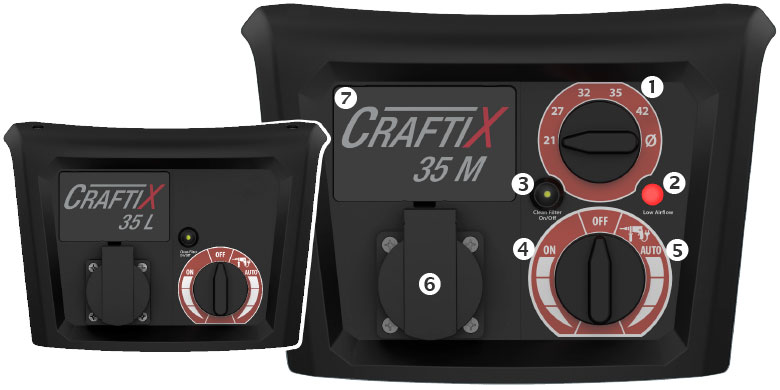

CraftiX 35 M/H + 50 M/H

(1) Selector switch hose diameter.
(2) High safety due to warning LED and acoustic warning signal.

CraftiX 35 L/M/H + 50 L/M/H

(3) On/off button automatic filter cleaning.
(4) Standard operation with infinitely adjustable power regulation.
(5) Automatic operation with connected power tool and infinitely variable power regulation.
(6) Socket for power tools up to a maximum of 2.200 watts.
(7) Customisation by way of printed logo.


Good reasons for efficient dust control.

Where power tools are used, dust is ­often produced. Not any type of dust, but harmful fine particles. The dust should be ­absorbed where it is formed, directly on the power tool.

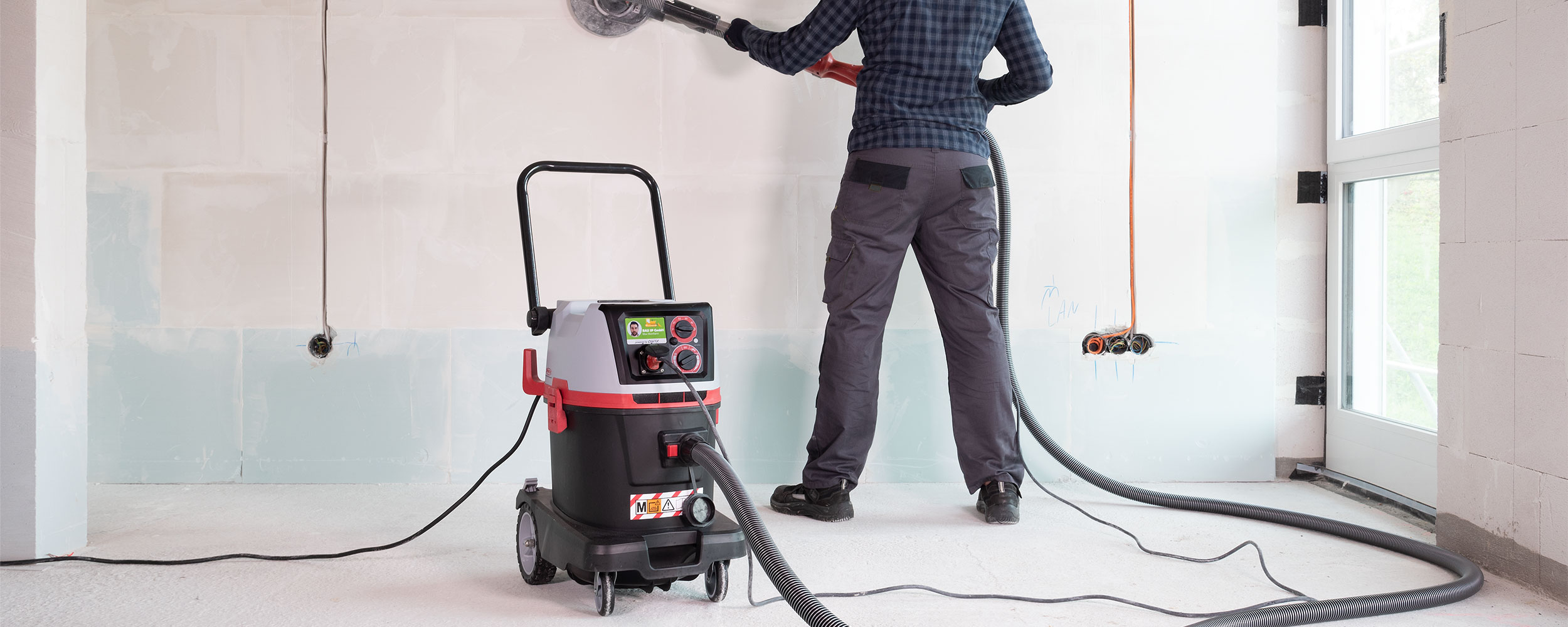

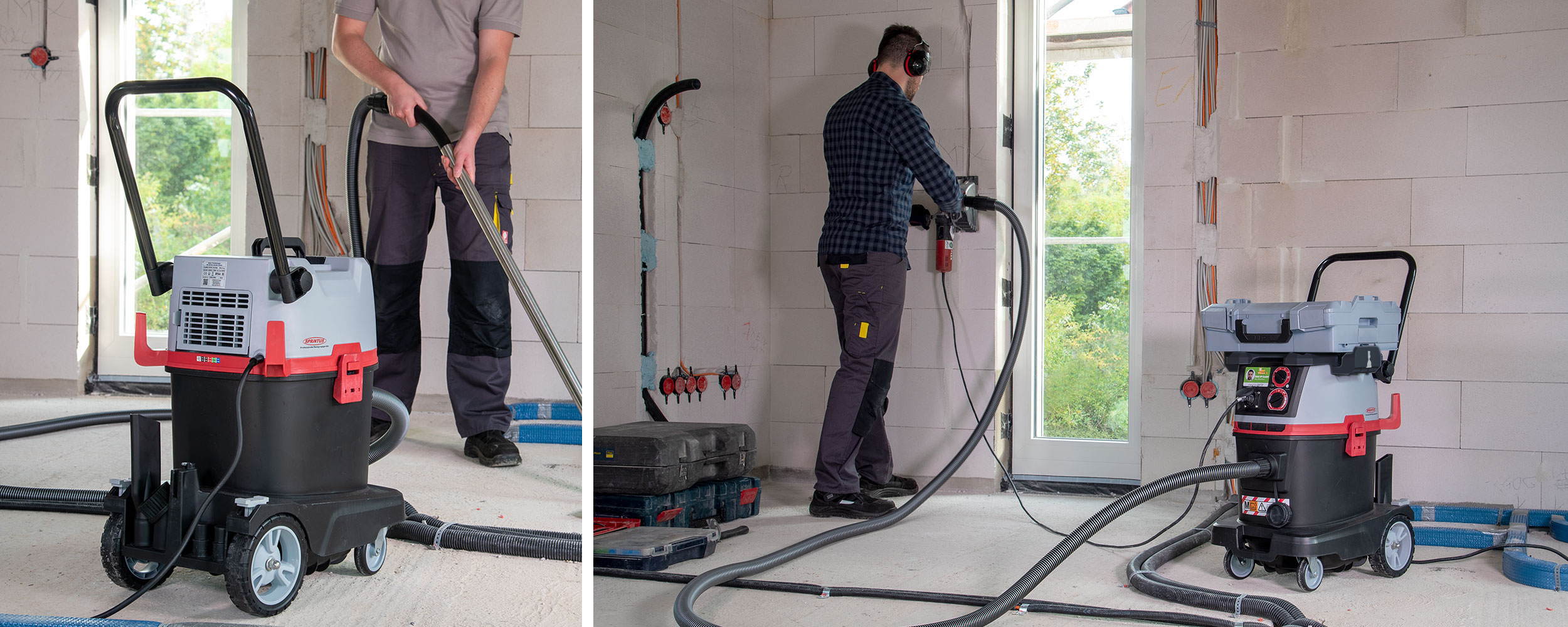

This is exactly what the robust SPRiNTUS safety vacuum cleaners are designed for. Whether on the construction site or in the workshop, they collect dusts that are hazardous to health at a constantly high level of suction power before it pollutes breathable air. In particular, fine dusts remain in the air we breathe in for a long time and can penetrate deep into the lung tissue. This can lead to asthma and other chronic lung  diseases. For this reason, legislators also prescribe the use of certified safety vacuum cleaners at construction sites. With the CraftiX safety vacuum cleaners, you protect the user from these risks. In this way, sawing, drilling, cutting, milling and grinding work can be carried out efficiently and safely without hesitation.

Your application is crucial.

What kind of safety vacuum cleaner is suitable for your application? The dust classes provide the answer to this question. Materials and their dusts are classified according to them and machines are certified,  because the vacuum cleaners meet the corresponding requirements for dust control.

Dust class* Maximum transmittance Suitable for Disposal

L

≤ 1,0%
  • Dusts with OEL** values > 1mg/m3
  • Domestic dust, soil, lime

—

M

< 0,1%
  • Dusts with OEL** values ≥ 0,1mg/m³
  • Wood, screed, primer coat and paint, plaster, cement, concrete,
    tile adhesive, paints such as latex and oil paints,
    quartz containing materials such as sand and pebbles

Low dust

H

< 0,005%
  • Dusts with OEL** values < 0,1mg/m3
  • Carcinogenic dust, dust with pathogens, dust with bacteria

Dust free

Asbestos requirement

< 0,005%
  • Dusts with OEL** values < 0,1mg/m3
  • Asbestos dust

Dust free

*according to the standard: IEC / EN 60335-2-69    **occupational exposure limit value



The overview provides information about the maximum transmittance of a certified vacuum cleaner as well as the legal occupational exposure limit value of the dusts. Class-L dusts are classified as only slightly hazardous, those belonging to Class M are deemed hazardous and those belonging to Class H are regarded as extremely hazardous. No special regulations must be observed when disposing L-dusts. M-dusts, on the other hand, must be disposed of in a low-dust manner and H-dusts must be disposed of in a dust-free manner. Depending on the dust class, the use of fleece filter bags (item no. 102.031) or special PE disposal bags (item no. 118.138) for dust-free disposal is recommended.

CraftiX model comparison

Technical specifications
Id
Voltage 220-240 V / 50-60 Hz 220-240 V / 50-60 Hz 220-240 V / 50-60 Hz 220-240 V / 50-60 Hz 220-240 V / 50-60 Hz 220-240 V / 50-60 Hz
Power 1200 W 1200 W 1200 W 1200 W 1200 W 1200 W
Sound power level LpA 74 dB(A) LpA 74 dB(A) LpA 74 dB(A) LpA 74 dB(A) LpA 74 dB(A) LpA 74 dB(A)
Max. suction 250 hPa / mbar 250 hPa / mbar 250 hPa / mbar 250 hPa / mbar 250 hPa / mbar 250 hPa / mbar
Volume flow rate 74 litres / sec. 74 litres / sec. 74 litres / sec. 74 litres / sec. 74 litres / sec. 74 litres / sec.
Container material plastic plastic plastic plastic plastic plastic
Container volume 35 litres (gross) 35 litres (gross) 35 litres (gross) 50 litres (gross) 50 litres (gross) 50 litres (gross)
Length power cord 10 m 10 m 10 m 10 m 10 m 10 m
Suction hose Ø 35 mm 5 m 5 m 5 m 5 m 5 m 5 m
Suction hose Ø 38 mm Unavailable 2,5 m 2,5 m Unavailable 2,5 m 2,5 m
Suction tube Ø 38 mm Check Check Check Check Check Check
Product weight 16 kg 16 kg 16 kg 17 kg 17 kg 17 kg
Dimensions (L x W x H) 54 x 39 x 63,5 cm 54 x 39 x 63,5 cm 54 x 39 x 63,5 cm 54 x 39 x 77 cm 54 x 39 x 77 cm 54 x 39 x 77 cm
Id
Vacuum tubes, stainless steel, 2 x 0,5 m Check Check Check Check Check Check
Dry floor nozzle 450 mm Check Check Check Check Check Check
Crevice nozzle Check Check Check Check Check Check
Round nozzle Ø 75 mm Check Check Check Check Check Check
HEPA 13 cartridge filter Check Check Unavailable Check Check Unavailable
HEPA 14 cartridge filter accessoires accessoires Check accessoires accessoires Check
Power tool adapter Ø 35 mm Check Check Check Check Check Check
Power tool adapter Ø 21, 25, 32 mm accessoires accessoires accessoires accessoires accessoires accessoires
Power tool adapter Ø 38 mm accessories accessories accessories accessories accessories accessories
Fleece filter bag Check Check Check Check Check Check
Disposal bag accessories Check Check accessories Check Check
Selector switch hose Ø Unavailable Check Check Unavailable Check Check
Acoustic warning signal Unavailable Check Check Unavailable Check Check
Warning LED Unavailable Check Check Unavailable Check Check
Suction hose 5 m, anti-static, oil-resistant accessories Check Check accessories Check Check
Suction hose 5 m Check Unavailable Unavailable Check Unavailable Unavailable
Suction hose 3 m, anti-static, oil-resistant accessories Check Check accessories Check Check
  • Checkstandard equipment
  • Unavailablenot available
Id
Brochure

Equipment and accessories

CraftiX 35 L (Item no. 118001)
CraftiX 50 L (Item no. 118015)

Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, suction hose 5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 13 cartridge filter, fleece filter bag, rubber mains cable:  H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm



CraftiX 35 M (Item no. 118030)
CraftiX 50 M (Item no. 118045)

Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, anti-static and oil-resistant suction hose 5 m with Ø 35 mm, anti-static and oil-resistant suction hose 2,5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 13 cartridge filter, fleece filter bag, disposal bag, rubber mains cable: H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm



CraftiX 35 H (Item no. 118060)
CraftiX 50 H (Item no. 118075)

Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, anti-static and oil-resistant suction hose 5 m with Ø 35 mm, anti-static and oil-resistant suction hose 2,5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 14 cartridge filter, fleece filter bag, disposal bag, rubber mains cable: H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm

Standard Accessories

Suction pipe, stainless steel, single

102018

Suction hose, antistatic and oil resistant, 5 m

118143

Suction hose antistatic 3,0 m

102116

Dry floor nozzle 450mm

102125

Crevice nozzle 240 mm

102016

Furniture nozzle

102017

Filter cartridge, HEPA 13

118100

Power cord, 10m, black

118110

Torx key T30

118124

Electro tool adapter Ø 21 / 25 / 32 mm

118122

Electro tool adapter Ø 35 mm

118139

Electro tool adapter Ø 35 mm

118141

Optional Accessories

Adapter plate for tool cases

118150

Fleece filter bag (5 pcs.)

102031

Waste bag (5 pieces)

118138

Wet floor nozzle 450mm

102124

Spare lip set 450mm

102126

Handle, antistatic
